LoRa TTL Module LORA6200II
Availability:
1 in stock (can be backordered)
₹4,749.50
₹4025 + 18% GST
incl. GST
Availability: 1 in stock (can be backordered)
1 in stock (can be backordered)

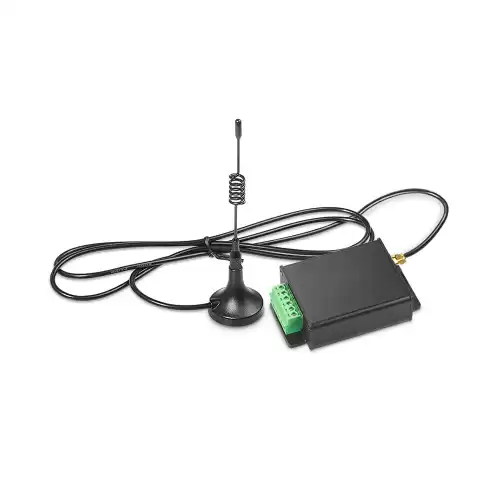

CompareLoRa6200II : 2W High Rate & Wide Voltage Uart LoRa Modem With ESD Protection
class=”YVrMNb-line YVrMNb-summary normal list-paddingleft-2″>
The LoRa II module is a new series of upgraded networking LoRa Modems. It is based on Semtech’s LLCC68 chip and uses advanced LoRa spread spectrum modulation frequency hopping technology to achieve high sensitivity. The penetrating ability and communication distance are much better than the current FSK and GFSK products, and have stronger anti-interference.We design the module as all-in-one way to meet the different customer’s requirement.
AES128 data encryption
No blind zone without distance limitation
5Km @ low rate, Line on sight & open area
Frequency band: 433/470/868/915 MHz for option
Up to 40 communication channels in the same frequency band
Diversified serial parameters
Operating voltage range: 9.0~ 30 V
LBT (Listen Before Talk) functionoptional
CRC optional
Hops Setting
Node/route/node+route optional in MESH mode
Built-in hardware reset protection circuit
LoRa modulation
TTL/RS232/RS485 interface
Sensitivity up to -129 dBm@1.3Kbps
Maximum output power: 2W (+33dBm)
Operating temperature range: -40 ~ +85 °C
Remote control
Remote meter reading
Industrial data collection
Home automation telemetry
Wireless data communication
Access control system
Features of LoRa Modem LoRa6200II
Applications of LoRa Modem LoRa6200II
| Parameters | Min. | Typ. | Â Max. | Unit | Condition |
| Working Condition | |||||
| Voltage range | 9 | 12 | 30 | V | |
| Operating Temperature | -40 | 25 | +85 | ℃ | |
| Current Consumption | |||||
| Rx current | <8 | mA | TTL/RS232Â level | ||
| Tx current | < 1.2 | A | @12V,33dBm | ||
| Sleep current | < 240 | uA | TTL/RS232Â level | ||
| RF Parameters | |||||
| Frequency range | 414.92 | 433.92 | 453.92 | MHz | @433MHz |
| 470.92 | 490.92 | 509.92 | MHz | @490MHz | |
| 849.92 | 868.92 | 888.92 | MHz | @868MHz | |
| 895.92 | 914.92 | 934.92 | MHz | @915MHz | |
| Data rate | 1312 | 62500 | bps | @LoRa | |
| Output power | 20 | +33 | dBm | 0~7 adjustable | |
| Sensitivity | -129 | dBm | @1.3Kbps | ||
