IoT Modules, LoRa Module

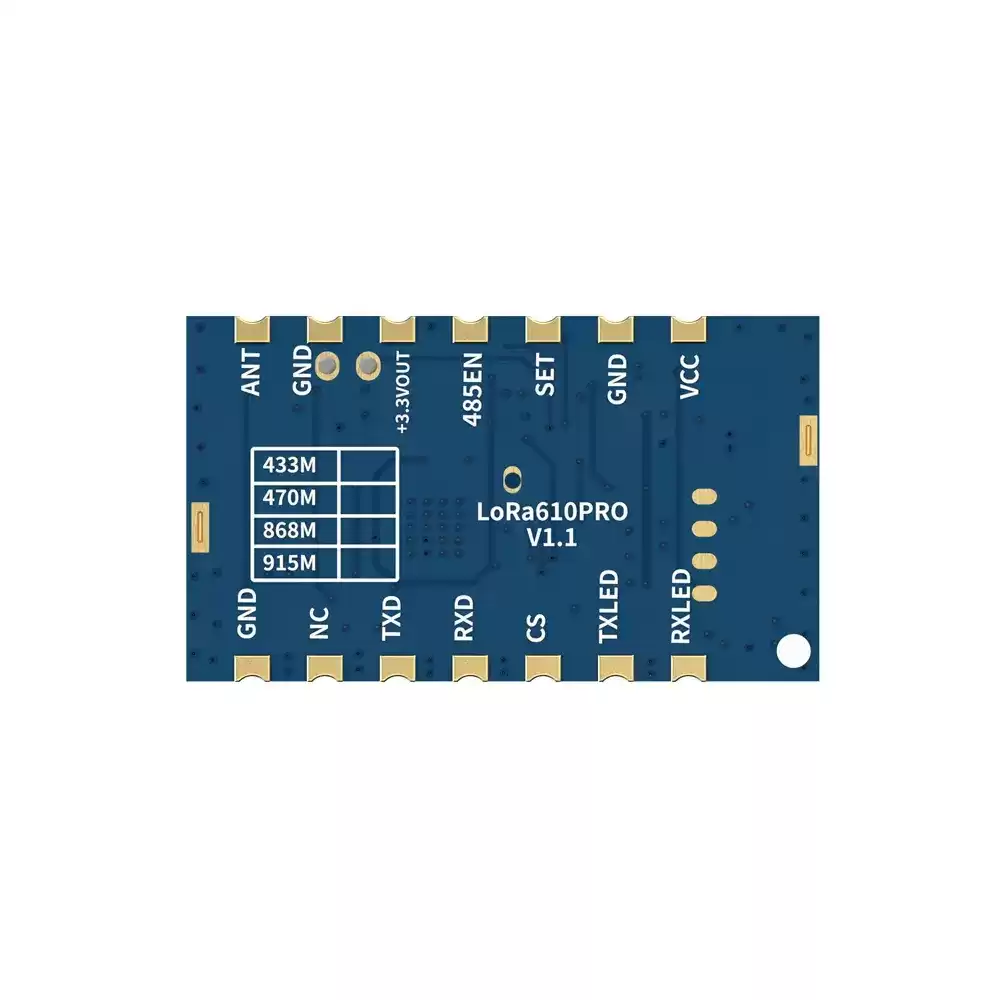

LoRa TTL Module LORA610PRO
SKU: LoRa610Pro
₹1,457.30
₹1235 + 18% GST
incl. GST
Availability: In Stock (10 units)
For bulk orders or B2B inquiries, email us: sales@empere.in
Chat with us on WhatsApp We reply quickly! Contact UsLoRa610Pro : KC Certification 100mW Embedded Small Size Uart LoRa Module With ESD Protection
- The LoRa module LoRa610pro is designed for 100mw output power and embedded small size design, which is widely used in wireless remote transmission control industries.
- LoRa610Pro strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.
- Note: The LoRa Pro series can be configured to be compatible with our previous uart LoRa modules.
- Hardware Features:
- 1. Small size.
- 2. Built-in hardware anti-crash self-reset circuit to resist strong external interference signals.
- 3. Overcurrent, overvoltage and reverse connection protection circuit.
- Software Features:
- 1. AES128 data encryption.
- 2. LBT (Listen Before Talk).
- 3. Node/route/node+route optional in MESH mode.
- Dual antenna design
- AES128 data encryption method
- No blind zone without distance limitation
- Single module open transmission distance of 5Km @ low rate
- Frequency band: 433/470/868/915 MHz for option
- Up to 40 communication channels in the same frequency band
- Diversified serial port parameters
- Operating voltage range: 3.3 ~ 6.5 V
- Operating temperature range: -40 ~ +85 °C
- LBT (Listen Before Talk) function optional
- Node/route/node+route optional in MESH mode
- Hop level in MESH mode
- CRC optional
- Built-in hardware reset protection circuit
- LoRa modulation
- TTL interface
- Sensitivity up to -139 dBm
- Maximum output power: 100 mW (+20 dBm)
- Remote control
- Remote meter reading
- Industrial data collection
- Home automation telemetry
- Wireless data communication
- Access control system
Features of LoRa Module LoRa610Pro
Applications of LoRa Module LoRa610Pro
| Parameters | Min. | Typ. | Max. | Unit | Condition |
| Working Condition | |||||
| Voltage range | 3.3 | 5.0 | 6.5 | V | |
| Operating Temperature | -40 | 25 | +85 | ℃ | |
| Current Consumption | |||||
| Rx current | <15 | mA | TTL level | ||
| Tx current | < 130 | mA | |||
| Sleep current | < 200 | uA | |||
| RF Parameters | |||||
| Frequency range | 414.92 | 433.92 | 453.92 | MHz | @433MHz |
| 470.92 | 490.92 | 509.92 | MHz | @470MHz | |
| 849.92 | 868.92 | 888.92 | MHz | @868MHz | |
| 895.92 | 914.92 | 934.92 | MHz | @915MHz | |
| Data rate | 91 | 656 | 17353 | bps | @LoRa |
| Output power | 4 | 20 | +20 | dBm | Software level 7 adjustable |
| Sensitivity | -139 | dBm | @91bps | ||
