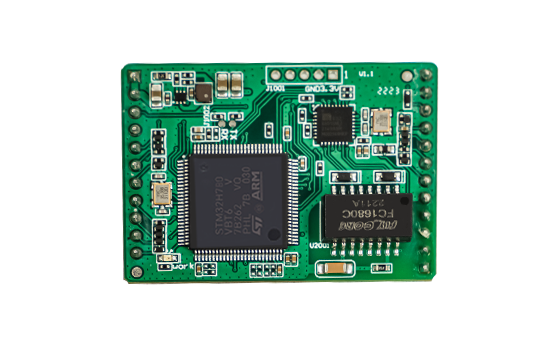

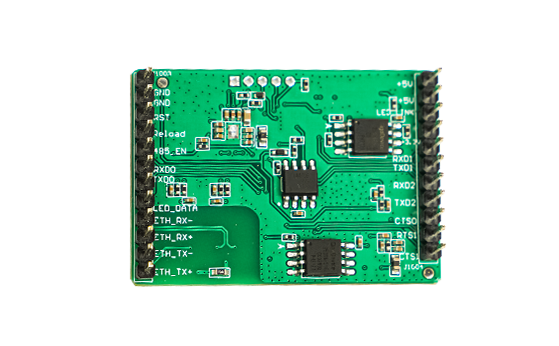

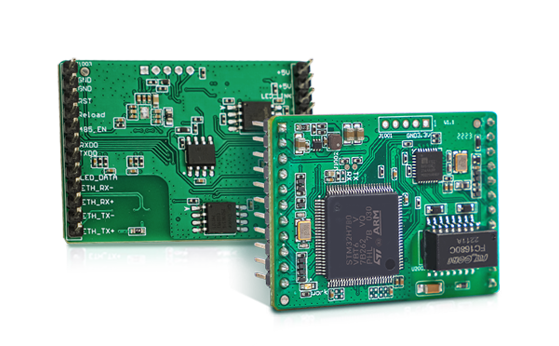

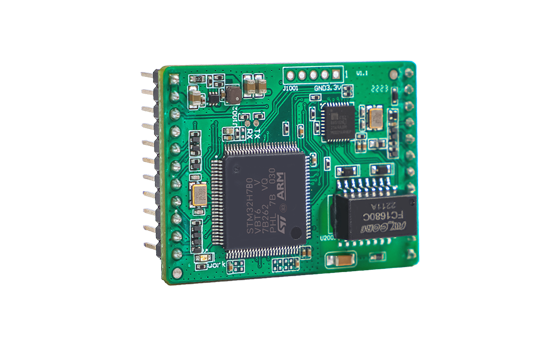

Ethernet Module USR-TCP232-ED2
Availability:
20 in stock (can be backordered)
- Triple Serial Port
- Data Security
- Modbus Gateway
- Multiple Protocols
₹1,593.00
₹1350 + 18% GST
incl. GST
Availability: 20 in stock (can be backordered)
20 in stock (can be backordered)
CompareEthernet Module USR-TCP232-ED2 Introduction of 2-TTL/3-TTL UART
USR-TCP232-ED2 is a triple UART to Ethernet converter module, industrial design, built-in fully optimized TCP/IP protocol stack, stable and reliable; supports virtual serial port VCOM; supports DNS domain name resolution, Keep-alive mechanism, hardware watchdog.
Specification of USR-TCP232-ED2
- SED2 supports five working modes: TCP Client, TCP Server, UDP Client, UDP Server, and HTTP Client
- Built-in hardware watchdog, stable operation for 24 hours without downtime.
- Parameters can be configured across network segments, the page is more concise.
- The firmware can be upgraded directly through the built-in webpage, which is convenient and quick.
- Support Modbus RTU and Modbus TCP protocol conversion Support Modbus multi-host polling
| USR | USR-TCP232-E2, USR-TCP232-ED2 |
|---|
| Item | Parameter | Description |
| Hardware Parameters |
Input Voltage | VCC:3.0～3.6V, (3.3V recommended) VDD:4.75～5.5V, (5.0V recommended) |
| Input Current | 210mA@3.3V/175mA@5.0V | |
| Dimensions | 44.5×31.8×15.4mm(L*W*H) | |
| Encapsulation | DIP encapsulation | |
| Operating Temperature |
-40~85℃ | |
| Storage Temperature | -40~105℃ | |
| Operating Humidity | 5%～95% RH(non-condensing) | |
| Storage Humidity | 5%～95% RH(non-condensing) | |
| Certifications | CE/FCC/ROSH | |
| Interface Parameters |
Ethernet Port Spec. | RJ45, 10/100Mbps, auto MDI/MDIX |
| Ethernet Port No. | Â 1 | |
| Serial Port Spec. | UART TTL 3.3V | |
| Serial Port No. | Â 3 | |
| Serial Baud Rate | 600-1M(bps) | |
| Data Bit | 7, 8 | |
| Parity | None, Even, Odd | |
| Flow Control | None, RTS/CTS, XON/XOFF | |
| RS-485 Pull-up and Pull-down Resistor |
2.2KΩ | |
| Software Parameters |
Network Protocol | IP/TCP/UDP/DHCP/DNS/HTTP/ARP/ICMP |
| IP Mode | Static IP, DHCP | |
| Modbus TCP | Support | |
| Websocket | Support | |
| HTTP Client | Support | |
| UDP Broadcast | Support | |
| User Configuring | Setup utility, webpage, AT commands | |
| Serial Packets Cache | Dynamic packet cache. For example: When the packet length is 10 byte, the serial port can cache 450 packets(4.5KB). When the packet length is 1460 bytes, the serial port can cache 10 packets(14.6KB). |
|
| Ethernet Packets Cache |
48Kbyte |
