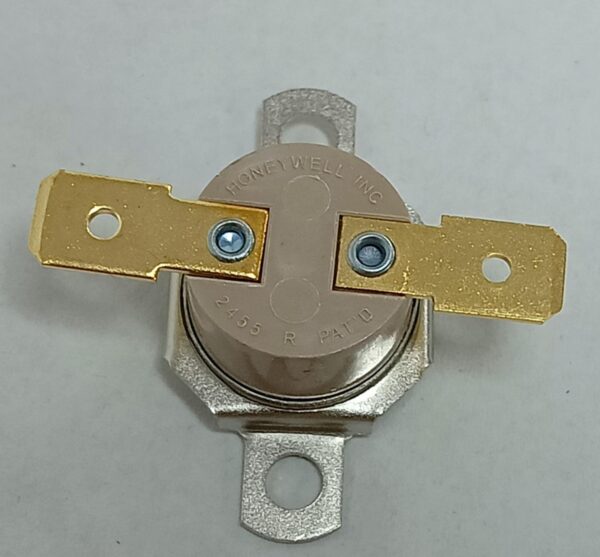

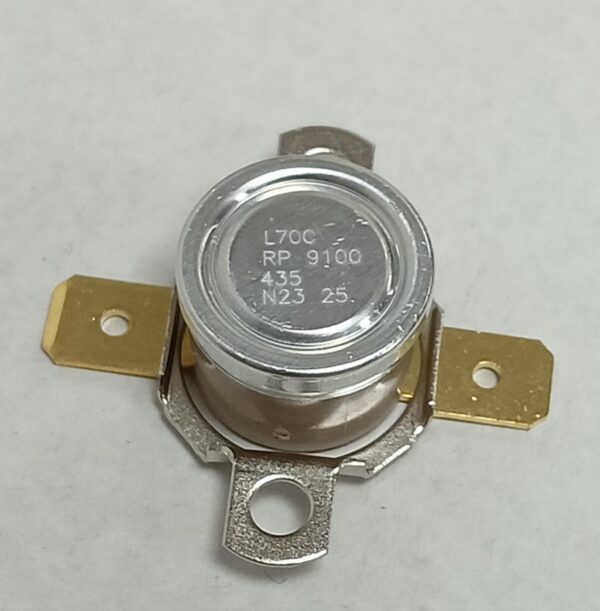

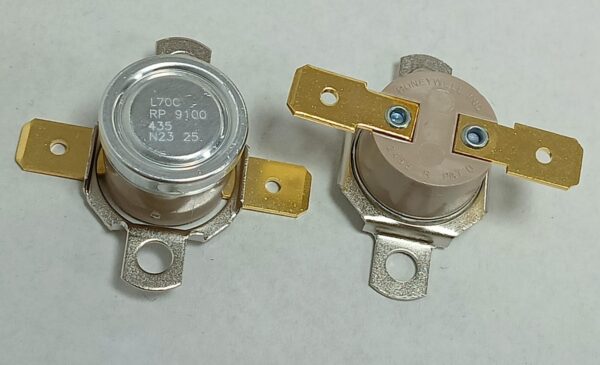

Thermostat 2455RP-91000435
Availability:
Backorder (Delivery in 2-4 Weeks)
₹2,360.00(₹ 236.00/each)
₹2000 + 18% GST
incl. GST
Pack of 10pcs
Availability: Backorder (Delivery in 2-4 Weeks)
CompareThermostat 2455RP-91000435 :
| P/N | 2455RP-91000435 | ||
| Series | 2455RP Series Plastic Automatic Reset Thermostats | ||
| Open Temp (°C) | 70 | Open Toll (+/-°C) | 3 |
| Close Temp (°C) | 55 | Closed Toll (+/-°C) | 5 |
| OOR/COR | OPEN ON RISE | ||
| Terminal | T-146 | ||
| Bracket | B-203S | ||
| Current/Voltage | 15 Amps at 120VAC | ||
| Contacts | Silver | ||
| Operating Temperature | 0 °C to 150 °C [32 °F to 302 °F] | ||
| Environmental Exposure Range | -18 °C to 177 °C [0 °F to 350 °F] | ||
| Dielectric Strength | MIL-STD-202, Method 301; 2000 Vac 60 Hz – Terminal to Case | ||
| Insulation Resistance | MIL-STD-202, Method 302; Cond. B – 500 MOhm – 500 Vdc applied | ||
| Contact Resistance | MIL-STD-202, Method 307; 0.050 Ohm | ||
| Housing Material | Plastic | ||
| Contacts composition | Silver/nickel alloy | ||
| Agency Approvals and Standards | UL, CSA | ||
