Sensors, Thermostats

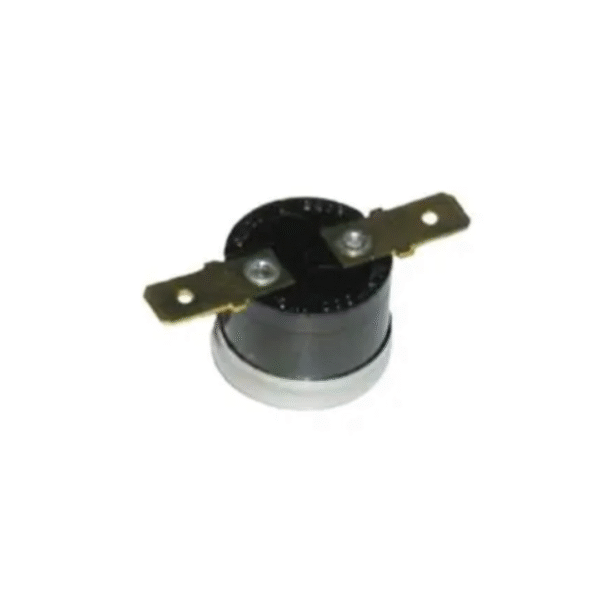

Thermostat 2455R–00820191
SKU: 2455R--00820191
₹2,950.00(₹ 295.00/each)
₹2500 + 18% GST
incl. GST
Pack of 10pcs
Availability: Available on backorder
For bulk orders or B2B inquiries, email us: sales@empere.in
- Part Number : 2455R–00820191
- Open Temperature : 100°C
- Close Temperature : 85°C
- OOR/COR : OPEN ON RISE
- Terminal : T-147
- Bracket : B-201A
Thermostat 2455R–00820191 :
| P/N | 2455R–00820191 | ||
| Series | 2455R Series Phenolic Automatic Reset Thermostats | ||
| Open Temp (°C) | 100 | Open Toll (+/-°C) | 4 |
| Close Temp (°C) | 85 | Closed Toll (+/-°C) | 5 |
| OOR/COR | OPEN ON RISE | ||
| Terminal | T-147 | ||
| Bracket | B-201A | ||
| Current/Voltage | 15 Amps at 120VAC | ||
| Contacts | Silver | ||
| Operating Temperature | 0 °C to 150 °C [32 °F to 302 °F] | ||
| Environmental Exposure Range | -18 °C to 177 °C [0 °F to 350 °F] | ||
| Dielectric Strength | MIL-STD-202, Method 301; 2000 Vac 60 Hz – Terminal to Case | ||
| Insulation Resistance | MIL-STD-202, Method 302; Cond. B – 500 MOhm – 500 Vdc applied | ||
| Contact Resistance | MIL-STD-202, Method 307; 0.050 Ohm | ||
| Housing Material | Phenolic | ||
| Contacts composition | Silver/nickel alloy | ||
| Agency Approvals and Standards | UL, CSA | ||
