Sensors, Thermostats

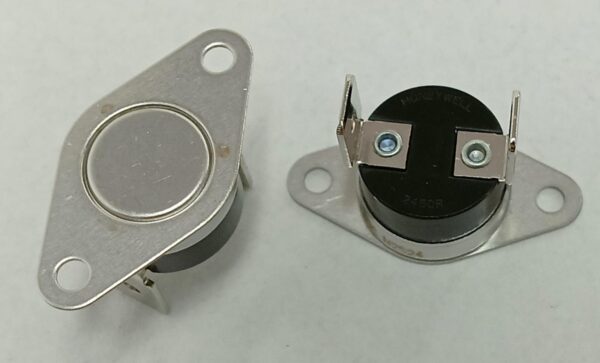

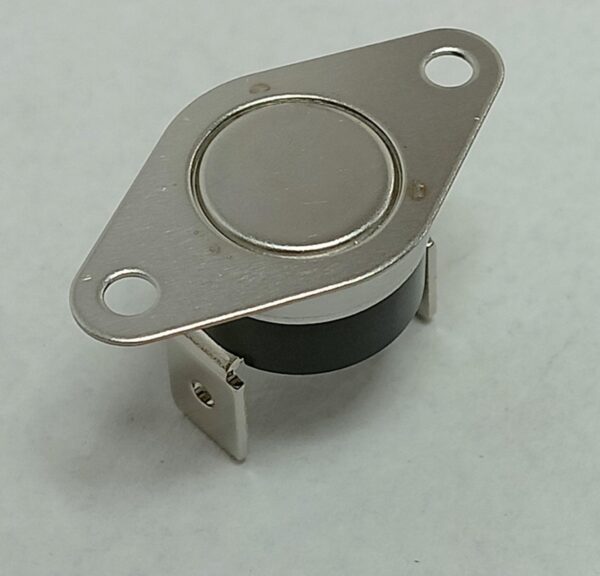

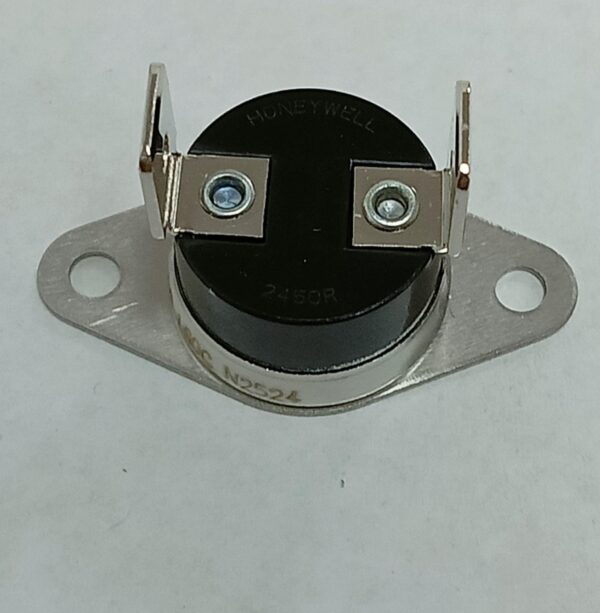

Thermostat 2450R 80821009
Availability:
Backorder (Delivery in 2-4 Weeks)
- Part Number : 2450R 80821009
- Open Temperature : 13°C
- Close Temperature : 29°C
- OOR/COR : CLOSE ON RISE
- Terminal : T-162
- Bracket : No Bracket
₹2,183.00(₹ 218.30/each)
₹1850 + 18% GST
incl. GST
Pack of 10pcs
Availability: Backorder (Delivery in 2-4 Weeks)
CompareThermostat 2450R 80821009 :
| P/N | 2450R 80821009 | ||
| Series | 2450R Series Phenolic Automatic Reset Thermostats | ||
| Open Temp (°C) | 13 | Open Toll (+/-°C) | 6 |
| Close Temp (°C) | 29 | Closed Toll (+/-°C) | 4 |
| OOR/COR | CLOSE ON RISE | ||
| Terminal | T-162 | ||
| Bracket | No Bracket | ||
| Current/Voltage | 15 Amps at 120VAC | ||
| Contacts | Silver | ||
| Operating Temperature | 0 °C to 150 °C [32 °F to 302 °F] | ||
| Environmental Exposure Range | -18 °C to 177 °C [0 °F to 350 °F] | ||
| Dielectric Strength | MIL-STD-202, Method 301; 2000 Vac 60 Hz – Terminal to Case | ||
| Insulation Resistance | MIL-STD-202, Method 302; Cond. B – 500 MOhm – 500 Vdc applied | ||
| Contact Resistance | MIL-STD-202, Method 307; 0.050 Ohm | ||
| Housing Material | Phenolic | ||
| Contacts composition | Silver/nickel alloy | ||
| Agency Approvals and Standards | UL, CSA | ||
| Drawing | Drawing Number: 2450R768 S1 | ||
