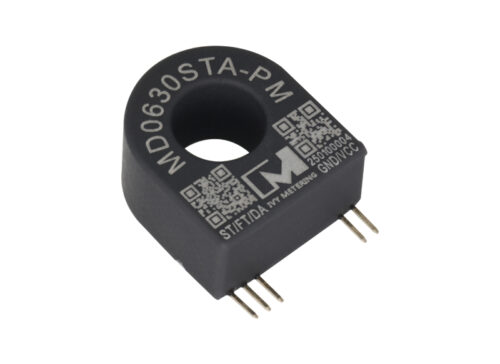

MD0630STA-PM Type B GFCI Sensor Earth Leakage Detection ZCT Differential Transformer for Solar Inverter :
MD0630STA-PM Introduction :
The MD0630STA-PM AC DC leakage current sensor(compatible with Type A and Type B) features high sensitivity, accurate measurement, and a compact & integrated design.
It outputs an alarm signal when it detects a DC leakage current of 3-6mA or an AC leakage current of 15-30mA. It also has a self-test function.
Its outstanding features are its ultra-small size and ultra-low price(Type B Quality, Type A Price).
Product Feature :
Wide voltage input: DC 4.85-5.5V
Measurement current range: DC 2-15mA, AC 3-100mA
Alarm current range: DC 3-6mA, AC 15-30mA
Alarm output: Open collector output
Short response time
Compact design
Self-test function: Use the test pin to determine whether the sensor is functioning properly
Operating temperature: -25°C to +80°C
