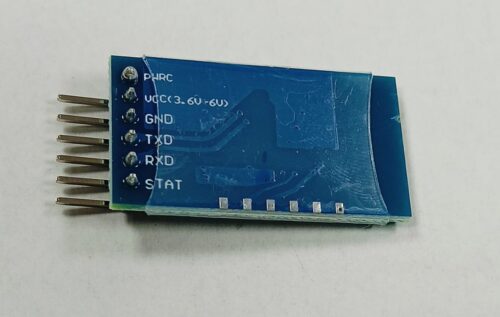

JDY-23 Bluetooth Module With Board
Availability:
20 in stock (can be backordered)
₹129.80
₹110 + 18% GST
incl. GST
Availability: 20 in stock (can be backordered)
20 in stock (can be backordered)
CompareJDY-23 Bluetooth Module With Board
Overview:
- Model: JDY-23
- Working voltage: 1.8V – 3.6V
- UART Communication
- Transmission Distance:60 meters
Features:
- Model: JDY-23
- Bluetooth version: BLE 5.0 (Compatible with BLE4.0, BLE4.2)
- Antenna: Built-in PCB antenna
- Working frequency band: 2.4G
- Transmission distance: 60 meters
- modulation mode is GFSK
- Master and slave support: slave
Specifications:
- Transmit power: 4db (maximum)
- Communication interface: UART
- Operating voltage: 1.8V – 3.6V
- Receive sensitivity: -97dbm
- Awakening state current: 800uA (with broadcast)
- Light sleep state current: <50uA (with broadcast)
- Deep sleep current: 9uA (no broadcast)
- Instruction parameter saving: Parameter configuration power-down data is saved
- STM soldering temperature: <260°C
