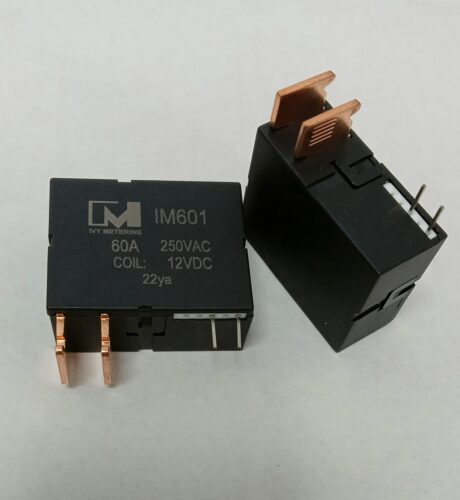

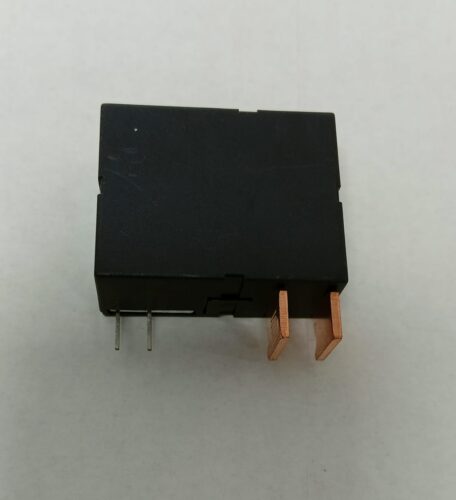

IM601 16120-S Disconnect Breaker 60A 250VAC 12VDC Coil Bistable SPST PCB Latching Relay :
60A Bistable RELAY
- Max. Switching Current:60A
- Rated Coil Consumption:1.5/3W(20ms)
- Dimension:38*30*16.5mm
- IEC62055-31 UC2 Certified,IEC61810-1 Compliant
- Widely used in EV field, industrial control field, etc.
Product Introduction :
- IM601 is a small industrial bistable latching power relay with continuous current up to 60A, and switching 60A 250VAC. Single and Double coil latching. Used in utility meters and for solar, EV charger and energy conservation.
- AC switching elements are a crucial part of safety and protection function in charging stations and cables. Key parts of the IVY line-up are the 40A IM-NE801A 2 pole power relay and 60A IM601 bistable relay. Both types are available with a mirror contact according to IEC 60947-1 and VDE / TUV/UL approvals.
- They can be used in the latest generation of wall boxes which fulfill either IEC 61851-1 or the recent IEC 62955 norm.
IM601 60A Power Latching Relay :
- Switching Capacity: 60A, 250VAC
- Single/Dual Coil Optional
- 4kV dielectric strength between coil and contacts
- Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt
- IEC62055-31 UC2 UC3 Certified
