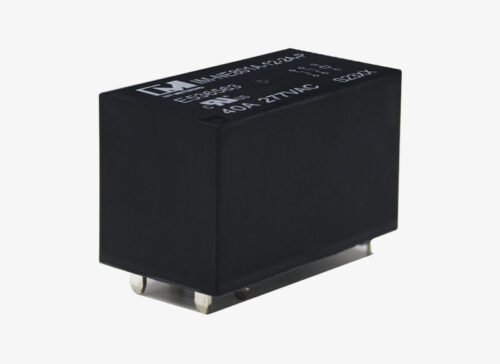

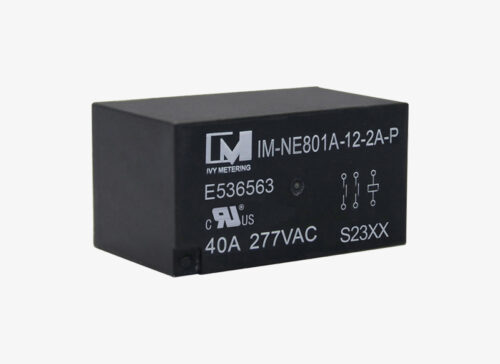

IM-NE801A-12-2A-P Non Latching Relay for AC Charging Station

IM-NE801A-12-2A-P Non Latching Relay for AC Charging Station :

Product Details :

• AC switching elements are a crucial part of safety and protection function in charging stations and cables. Key parts of the IVY line-up are the 40A IM-NE801A 2 pole power relay and 60A IM601 1 pole bistable relay. Which fulfill either IEC 61851-1 or the recent IEC 62955 norm. IM-NE801A main features as follow:
• Switching Capacity: 40A 277VAC; Contact Form: 2A; Low Temperature Rise; Sealed Structure to Resist Harsh Environment; UL/TUV Certified, IEC61810-1 Compliant.
• The relay has short-time overcurrent characteristics, can withstand three times of 1000A 1ms overcurrent, and the contacts will not be damaged, and can continue to work normally to open and close.
• More importantly, the main advantages of lie in large conntact gap:
• Its contact distance can be up to 3mm, and the contact spacing of the general relay is about 0.8mm or 1.5mm. In some ways this feature made contact between medium pressure can improve a lot, the higher the withstand voltage value, and also solve the problem of contact resistance increase rapidly, etc, under non-operation status it can avoid wrong operation or damage caused by external factors. which improves the tensile arc resistance of the contact and prolongs the service life of the relay.
