DWIN 7inch HMI SMART LCD , Capacitive Touch, IPS Screen, Serial UART Intelligent Control, 1024*600, 300nit, DMG10600C070_03WTC

This model is the intelligent LCD display module with a capacitive touch screen for user interactivity.  It has onboard serial UART PORT which can be controlled by any microcontroller via a  simple yet powerful command set. It can be used as TFT Display & Touch controller in various electronic equipment such as vending machines, currency counting machines, washing machines, and many other similar appliances.

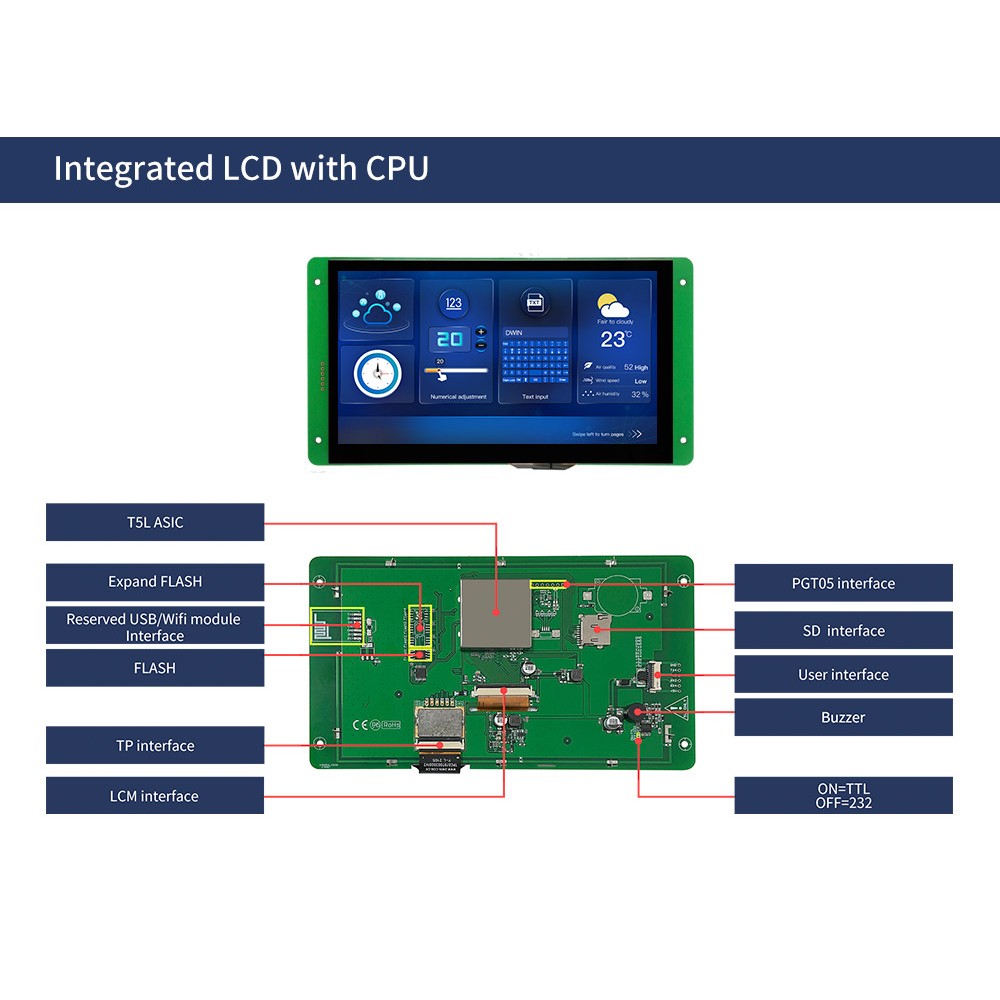

• Based on T5L ASIC 7.0 Inches, 1024xRGBx600, 16.7M Colors, IPS screen;
• Capacitive touch panel;

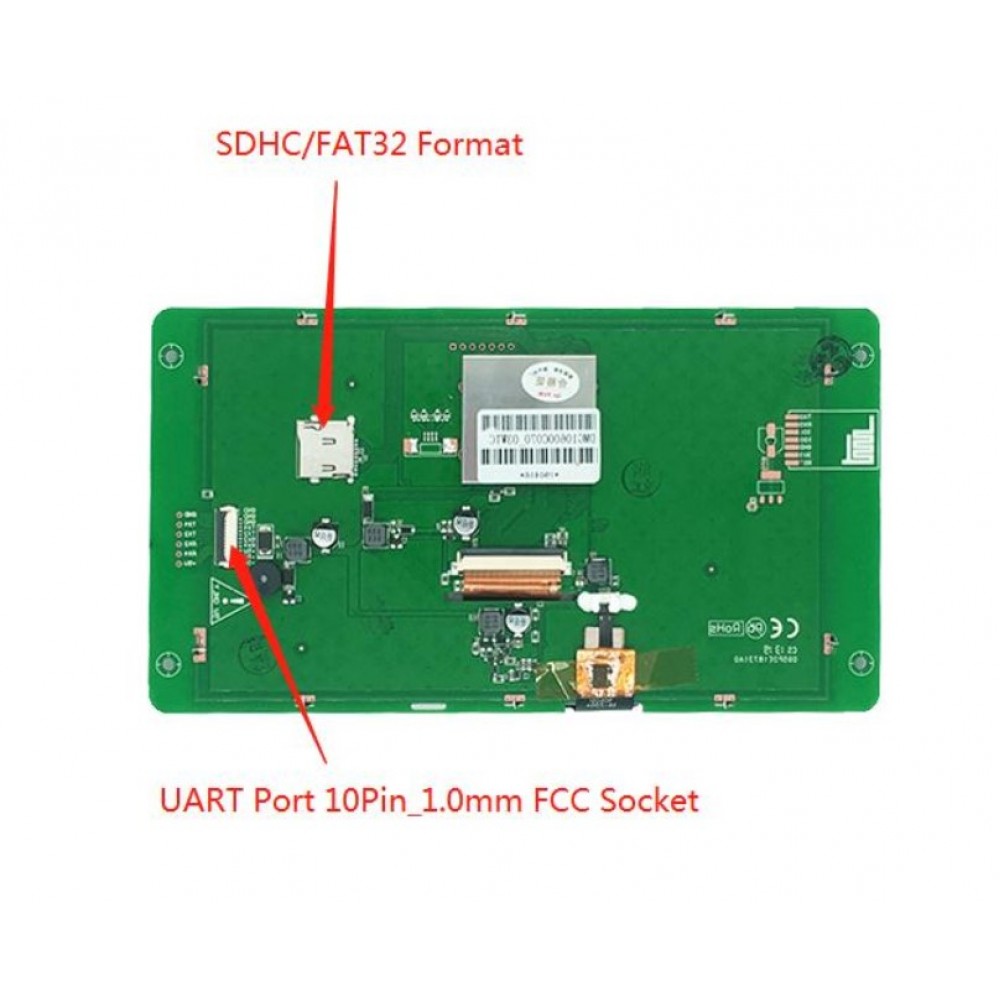

• UART2: ON=TTL/CMOS; OFF=RS232;UART4: ON=TTL/CMOS; OFF=RS232; 10Pin_1.0mm FCC Socket;
• Download methods:via SD card or on-line serial port;
• Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required;
• Dual Development System:DGUSⅡ/TA(Instruction set);
• LCD:IPS View Angle:85/85/85/85(L/R/U/D);
• With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51.
