Displays, Smart LCD Module

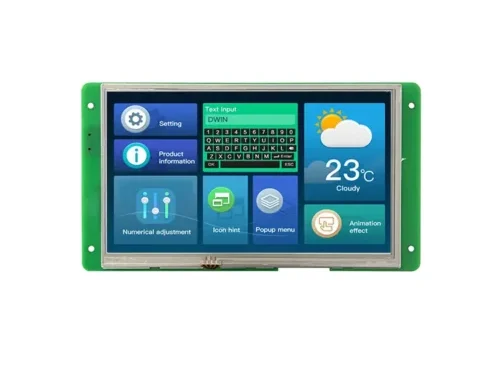

DWIN 7 Inch HMI LCD Display Touch Panel DMG80480C070_04WTC
SKU: DMG80480C070_04WTC
₹3,776.00
₹3200 + 18% GST
incl. GST
Availability: In Stock (34 units)
For bulk orders or B2B inquiries, email us: sales@empere.in
- Part Number : DMG80480C070_04WTC
- Size : 7 inch
- Resolution : 800×480
- Touch Type : Capacitive Touch
- Interface : TTL/RS232
DWIN 7 Inch HMI LCD Display Touch Panel DMG80480C070_04WTC :
Features:
- Based on T5L0, running DGUS II system, commercial grade.;
- 7-inch, 800*480 pixels resolution, 262K colors, TV-TN-TFT-LCD.
- No touch screen/Resistive touch screen/Capacitive touch screen Optional;
- TTL/RS232 interface; 10Pin_1.0mm connection wire;
- Download via SD card or on-line serial port;
- Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required;
- Dual Development System:DGUS Ⅱ/TA(Instruction set);
- TV viewing angle, 70°/70°/40°/30°（L/R/U/D）;
- With GUI&OS dual-core, GUI with rich controls, DWIN OS kernel is open to the user for the second-development via DWIN OS language or KELI C51.
