Sensors, Thermostats

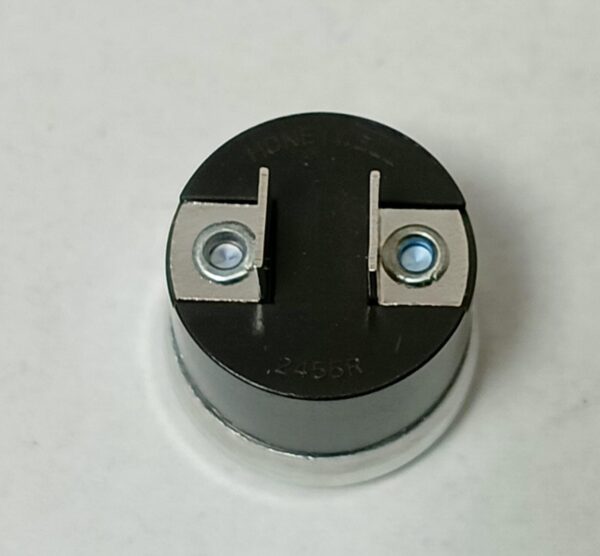

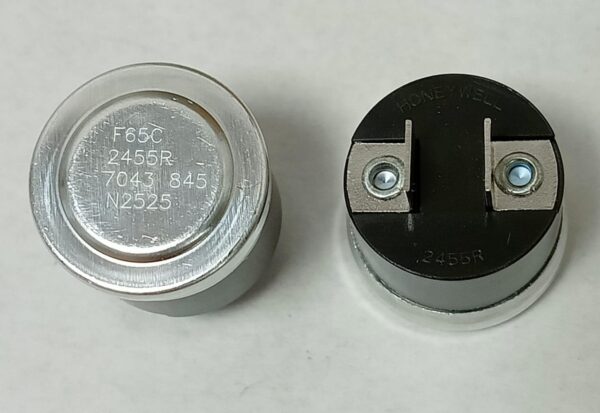

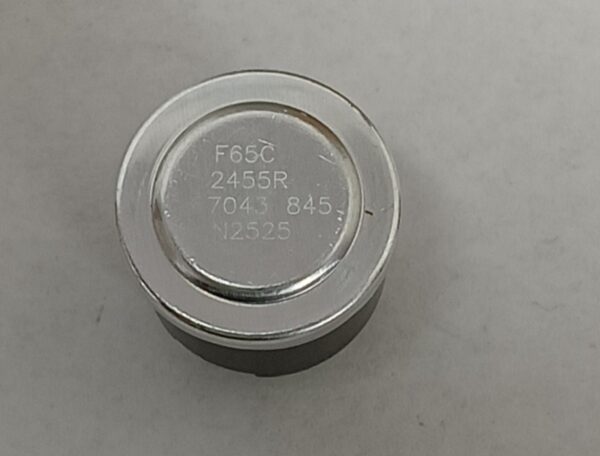

Thermostat 2455R–70430845
Availability:
500 in stock (can be backordered)
- Part Number : 2455R–70430845
- Open Temperature : 30°C
- Close Temperature : 20°C
- OOR/COR : OPEN ON RISE
- Terminal : 16 AWG BLK 78″ PVC
- Bracket : No Bracket
₹2,183.00(₹ 218.30/each)
₹1850 + 18% GST
incl. GST
Pack of 10pcs
Availability: 500 in stock (can be backordered)
500 in stock (can be backordered)
CompareThermostat 2455R–70430845 :
| P/N | 2455R–70430845 | ||
| Series | 2455R Series Phenolic Automatic Reset Thermostats | ||
| Open Temp (°C) | 30 | Open Toll (+/-°C) | 3 |
| Close Temp (°C) | 20 | Closed Toll (+/-°C) | 3 |
| OOR/COR | OPEN ON RISE | ||
| Terminal | 16 AWG BLK 78″ PVC | ||
| Bracket | No Bracket | ||
| Current/Voltage | 15 Amps at 120VAC | ||
| Contacts | Silver | ||
| Operating Temperature | 0 °C to 150 °C [32 °F to 302 °F] | ||
| Environmental Exposure Range | -18 °C to 177 °C [0 °F to 350 °F] | ||
| Dielectric Strength | MIL-STD-202, Method 301; 2000 Vac 60 Hz – Terminal to Case | ||
| Insulation Resistance | MIL-STD-202, Method 302; Cond. B – 500 MOhm – 500 Vdc applied | ||
| Contact Resistance | MIL-STD-202, Method 307; 0.050 Ohm | ||
| Housing Material | Phenolic | ||
| Contacts composition | Silver/nickel alloy | ||
| Agency Approvals and Standards | UL, CSA, VDE | ||
