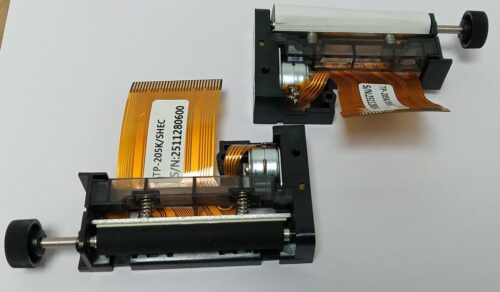

2 inch Thermal Printer Mechanism | TP-205K
Availability:
5 in stock (can be backordered)
₹885.00
₹750 + 18% GST
incl. GST
Availability: 5 in stock (can be backordered)
5 in stock (can be backordered)
2 inch Thermal Printer Mechanism | TP-205K :
Feature:
| Printing method: | Thermal dot line |
| Number of dots: | 384 |
| Resolution (dots/mm): | 8 |
| Printing width (mm): | 48 |
| Paper width (mm): | 58 |
| Max. paper thickness (um): | 80 |
| Paper loading: | Easy loading |
| Printing speed (mm/s): | 85 |
| Paper detection: | Opto sensor |
| Temperature detection: | Thermistor |
| Head-up or Cover-open detection: | Combined with opto sensor |
| Voltage range (Logic/Head): | 2.7-5.25 / 2.7-7.2or4.5-8.5V |
| Dot resistance (Ohm): | 123/176 ± 4% |
| Energy per dot (mJ): | 0.15 |
| Stepper motor (Ohm): | Bipolar (12) |
| Weight (g): | 40 |
| Life/reliability: | 50km/100M pulses |
| Operating temperature (C): | 0 to 50 non cond. |
| Operating humidity (%): | 20 to 85 non cond. |
| Dimensions (WxDxH mm): | 68.3x41x15 |
| Weight(g) | 36 |
