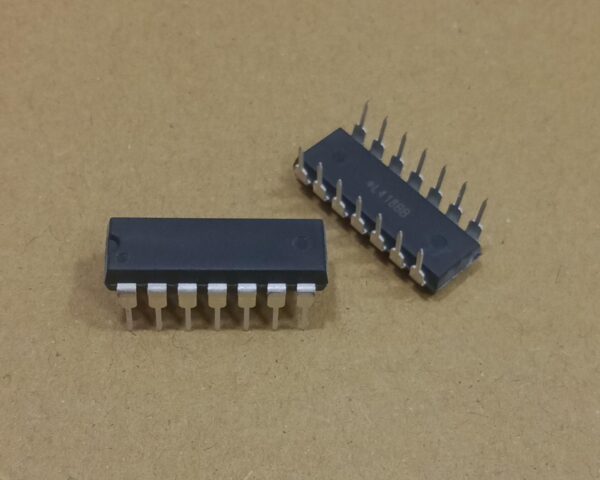

FMD 8051 MCU FT61F022A-DRB | 10pcs

Availability:

Backorder (Delivery in 2-4 Weeks)


1T 8051 MCU
Operating Voltage: 1.9V~5.5V
Flash ROM : 2K *14
SRAM : 128B
DROM : 256B
IO’s : 12
Timer : 2+3RTC
Package : DIP14

DATASHEET

188.80(₹ 18.88/each)

incl. GST

Pack of 10pcs

Availability: Backorder (Delivery in 2-4 Weeks)

pack 10pcs

Pack of 10pcs


Special price on bulk order

Secure Payment

Fast & Quick Delivery

Technical Support

8-bit CPU (EEPROM)
• 37 RISC instructions: 2T or 4T
• 16 MHz / 2T (VDD ≥ 2.7)
• Up to 16 pins
Memory
• PROGRAM: 2k x 14 bit (read/write protected)
• DATA: 256 x 8 bits
• RAM: 128 x 8 bits
• 8-layer hardware stack
Operating Conditions (5V, 25°C)
• VDD (VPOR ≤ 2.0V) VPOR − 5.5V
(Automatic adjustment by POR, ≤1.7V above 0°C)
• Operating temperature class1 −40 − +125 °C
• Operating temperature class 2 −40 − +105 °C
• Operating temperature class 3 −40 − + 85 °C
• Low Standby 0.7 μA
• WDT 3.2μA
• Normal mode (16 MHz) 207 μA/mips
high reliability
• 1 million erase cycles (typical)
• > 20 years / 85°C storage (typical)
• ESD > 4 kV, EFT > 5.5 kV
ADC (10-bit)
• True 10-bit accuracy (≤ 1 MHz ADC clock)
• 7 + 1 channels
• VADC−REF
 Internal: 2.0, 3.0, VDD
 External: VREF pin
• Special event triggers and interrupts
Comparator (2 way)
• 16-level programmable reference voltage
Regulator output (2 channels)
• Can output 32 levels of voltage
PWM (Total 5)
• Enhanced Capture/Compare/PWM
 PWM mode: single PWM, half bridge, full bridge
 3 pairs of PWM (6 I/O): complementary output + dead zone
 Single pulse mode
 Same period, duty cycle
 Polarity selectable

SKU: FT61F022A-DRB Categories: ,
